| ¡Ö MONORAIL HOIST SINGLE SPEED |
| |
 |
| ¡Ö Specification |
| |
| |
Capacity
(KG) |
Product code |
Lifiting
Height
(m) |
Wire rope
Dia.-F/R |
Lifting speed
(m/min) |
Hoisting Motor |
Traversing speed
(m/min) |
Traversing Moto |
Grade
(ISO) |
| 50Hz |
60Hz |
Output
(KW) |
Rating
(%ED) |
50Hz |
60Hz |
Output
(KW) |
Rating
(%ED) |
| 1,000 |
YE-10-6 |
6 |
8-2/1
|
6.5
|
8.0 |
1.5 |
60% |
15
|
18
|
0.25
|
40%
|
M6
|
YE-10-9 |
9 |
YE-10-12 |
12 |
YE-10-15 |
15 |
| 2,000 |
YE-20-6 |
6 |
10-2/1 |
5.0 |
6.0 |
2.2 |
60% |
15 |
18 |
0.25 |
40% |
M6 |
YE-20-8 |
8 |
YE-20-12 |
12 |
YE-20A-12 |
8.3
|
10
|
3.7
|
YE-20A-18 |
18 |
| 3,000 |
YE-30H-6 |
6 |
10-4/1 |
3.3 |
4.0 |
2.2 |
60% |
18 |
18 |
0.4 |
40% |
M5 |
AE-30-6 |
12-2/1 |
5.5 |
6.6 |
6.3 |
M6 |
AE-30-9 |
9 |
AE-30-12 |
12 |
AE-30-15 |
15 |
YE-30A-9 |
9 |
8.3 |
10 |
6.3 |
YE-30A-15 |
15 |
|
| |

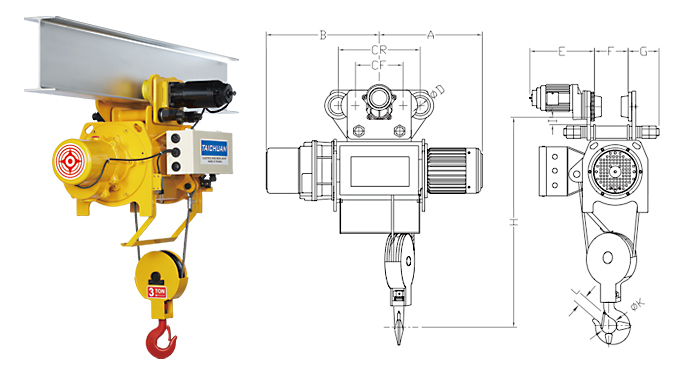

| ¡Ö Dimensions (mm) |
| |
| |
Capacity
(KG) |
Product code |
A |
B |
CR |
CF |
¡íD |
E |
F |
G |
H |
I |
¡íK |
L |
| 1,000 |
YE-10-6 |
410 |
150 |
180
|
140 |
78 |
355 |
75~150 |
145 |
795 |
40 |
48 |
38 |
YE-10-9 |
470 |
510 |
300 |
185 |
155 |
YE-10-12 |
570 |
610 |
480 |
YE-10-15 |
| 2,000 |
YE-20-6 |
470 |
510 |
300
|
185 |
106 |
365 |
75~150
|
155 |
805 |
|
48 |
38 |
YE-20-8 |
YE-20-12 |
570 |
610 |
480 |
YE-20A-12 |
510 |
590 |
300 |
125~175 |
175 |
1065 |
32 |
YE-20A-18 |
590 |
670 |
480 |
| 3,000 |
YE-30H-6 |
570 |
610 |
480 |
185 |
106 |
365 |
100~175 |
155 |
905 |
36 |
70 |
42 |
AE-30-6 |
510 |
590 |
300 |
125~175 |
175 |
1085 |
32 |
AE-30-9 |
AE-30-12 |
590 |
670 |
480 |
AE-30-15 |
YE-30A-9 |
580 |
610 |
300 |
YE-30A-15 |
660 |
690 |
480 |
|
|
 |
